Explore Our Recent Project //

2D Design

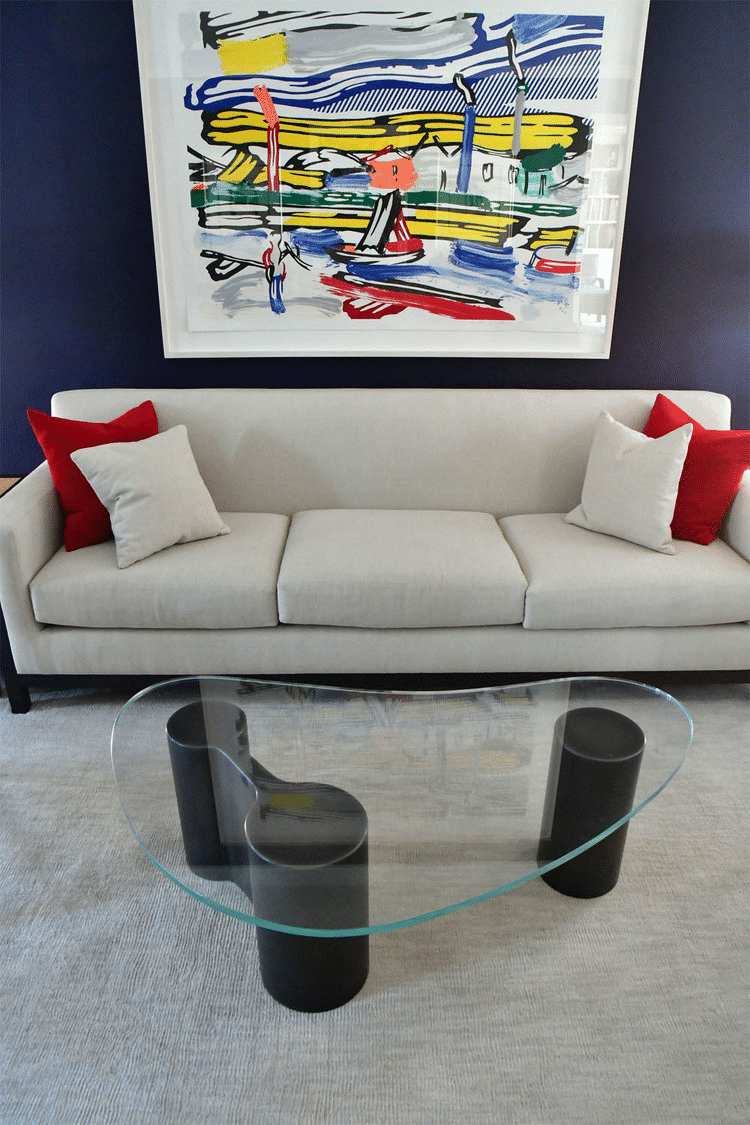

Gravitational Forces Tabletop

Project Overview:

A customer needed a cutting file (DXF or Drawing Interchange Format) to send to their waterjet. A previously botched attempt had cost them thousands of dollars in material.

First, the PDF was brought into SolidWorks and scaled at the pixel level using this scale tool:

Then, it was traced at a pixel-level zoom using the spline tool:

Finally, since many machines cannot handle spline DXFs, the splines were traced over with tangent arcs:

. . . and the DXF file was exported from that.
